Detection system of IEO technology can detect the front and rear camera sharpness, screen bad spot, sensor gyroscope, flash, screen sensitivity, audio volume, SIGNal-to-noise ratio and other performance indicators, saving labor costs.
Adopt pipelined multithreaded control design, support up to 8 mobile phones to detect at the same time, average 20-25s out of a mobile phone. Equipment UPH (capacity per hour) ≥ 150PCS.
PMADS automatic detection equipment is suitable for testing Android or Apple series mobile phones. It focuses on the difficult links such as camera lens, screen and audio, which require high skills of testers. Instead of manual testing, it can realize efficient standardized testing with high cost performance.
Shenzhen Aiyiou Technology Co., Ltd. is committed to reducing the manual test process due to different skills caused by the score is not standard.
PMADS Automatic test machine test items, including:
1）Distance and light sensor
2）Front and rear shots, hd MTF, brightness balance, color balance, white balance, flash
3）White screen red screen black screen, screen bad lines, spots, bright spots, dark spots, bright spots, stripes, light transmission, light leakage, liquid leakage.
4）Screen touch sensitivity、3Dtouch
5）The volume and frequency of the earpiece, speaker, and the volume and frequency of the top and bottom microphones
6）True and false screen (original or not)
PMADS Test the advantage：1.Reduce manpower and environment configuration requirements
The testing system can realize pipelin-type automatic detection of cameras, screens, audio and other testing processes, reducing the need for manual testing manpower and testing hardware environment.
2.Substitute for human eye judgment
Through the intelligent algorithm, it can identify the small flaws of the lens, screen and sound screen, instead of the human eye judgment that requires professional training. The results of each detection process can be archived and played back, and the detection results can be accurate and standardized.
3.Automatic test process control
Automatically complete the switching and control in the testing process, without manual intervention in the middle, efficient and unified testing process.

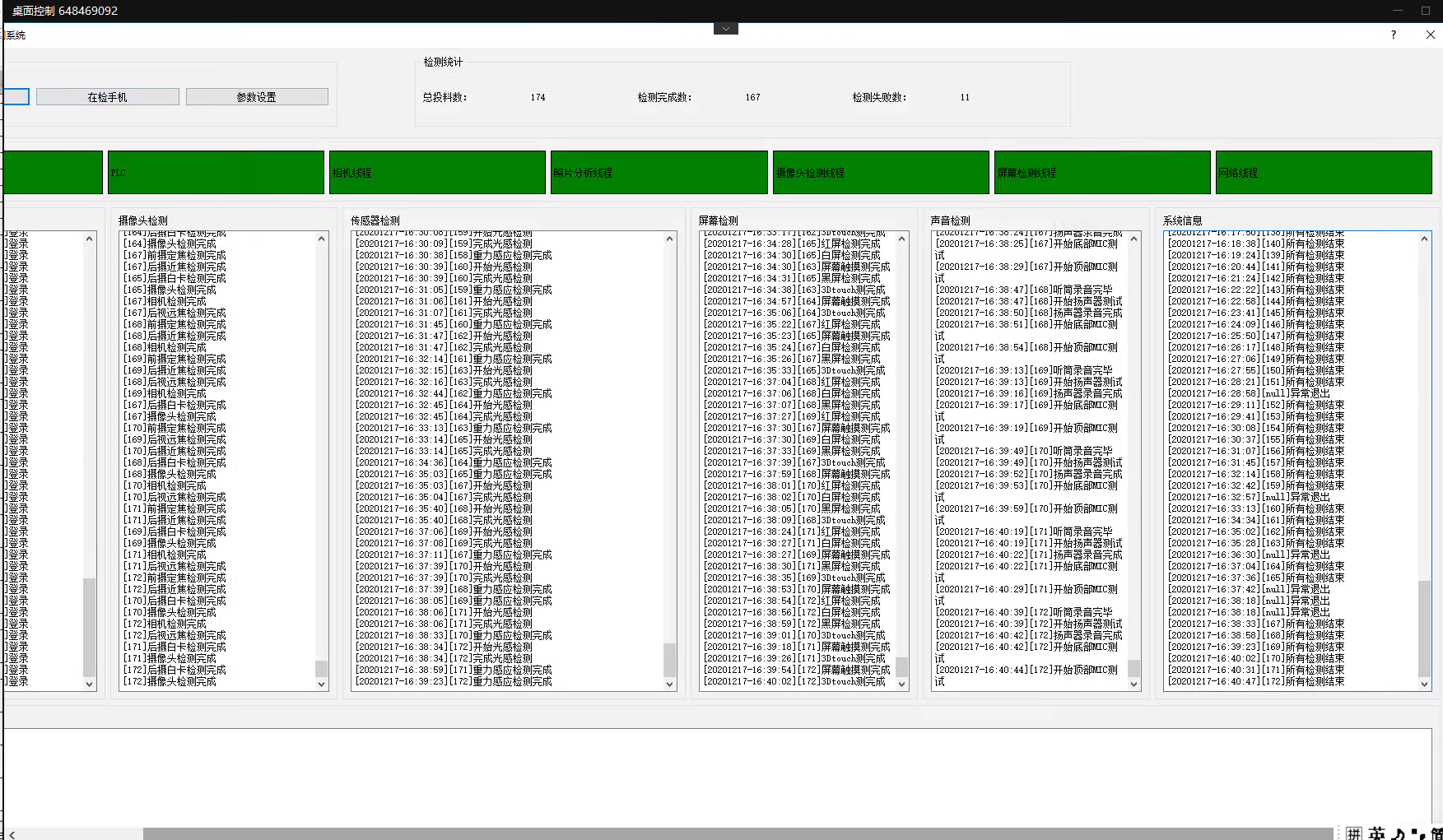

IEO Technology smart phone detection system PMADS，Connected with APP through socket protocol, PMADS central console design has the following characteristics:
1. Using asynchronous concurrent IO mode, natural support large numbers of mobile phones connected at the same time.
2. Reasonably split each test item, make each test item can be carried out at the same time, do not interfere with each other.
3. Thread pooling enables detection items with high computational load to be allocated more computing resources through configuration to achieve fast calculation.
4. Detection isolation: Different detection threads are allocated to different detection threads and do not affect each other. Even if one detection fails, other detection threads are not affected.
5. The detection is controllable. Each detection item must be completed within the specified time to avoid occupying too many resources.
Multi-threaded concurrent control of the central console for multiple mobile phones at the same time: sharpness analysis of front and rear cameras, detection of bad line bad spot on the screen, analysis of camera lens whether there is dark spot bad line, judgment of screen sensitivity, and calculation of microphone and speaker volume signal-to-noise ratio.

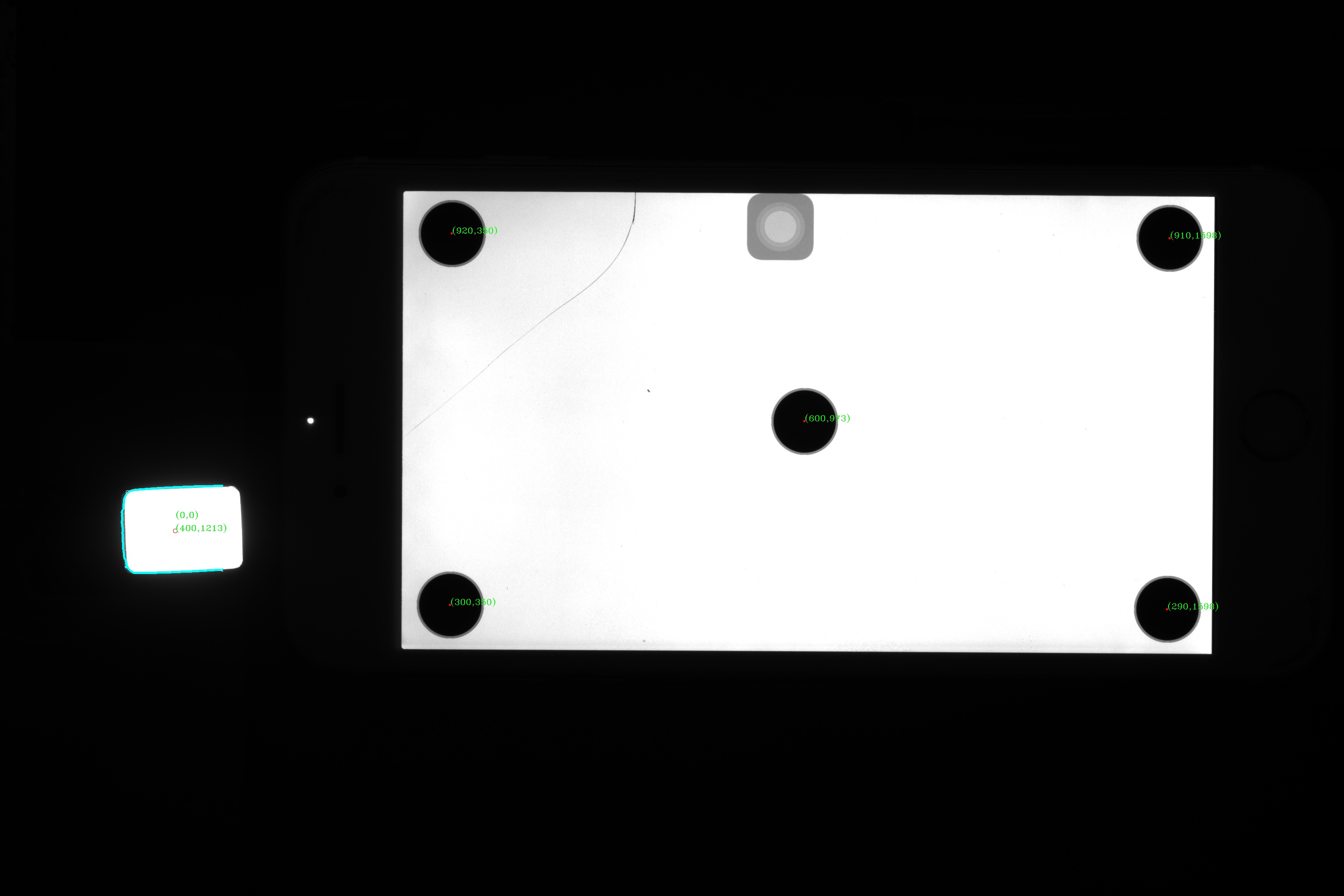

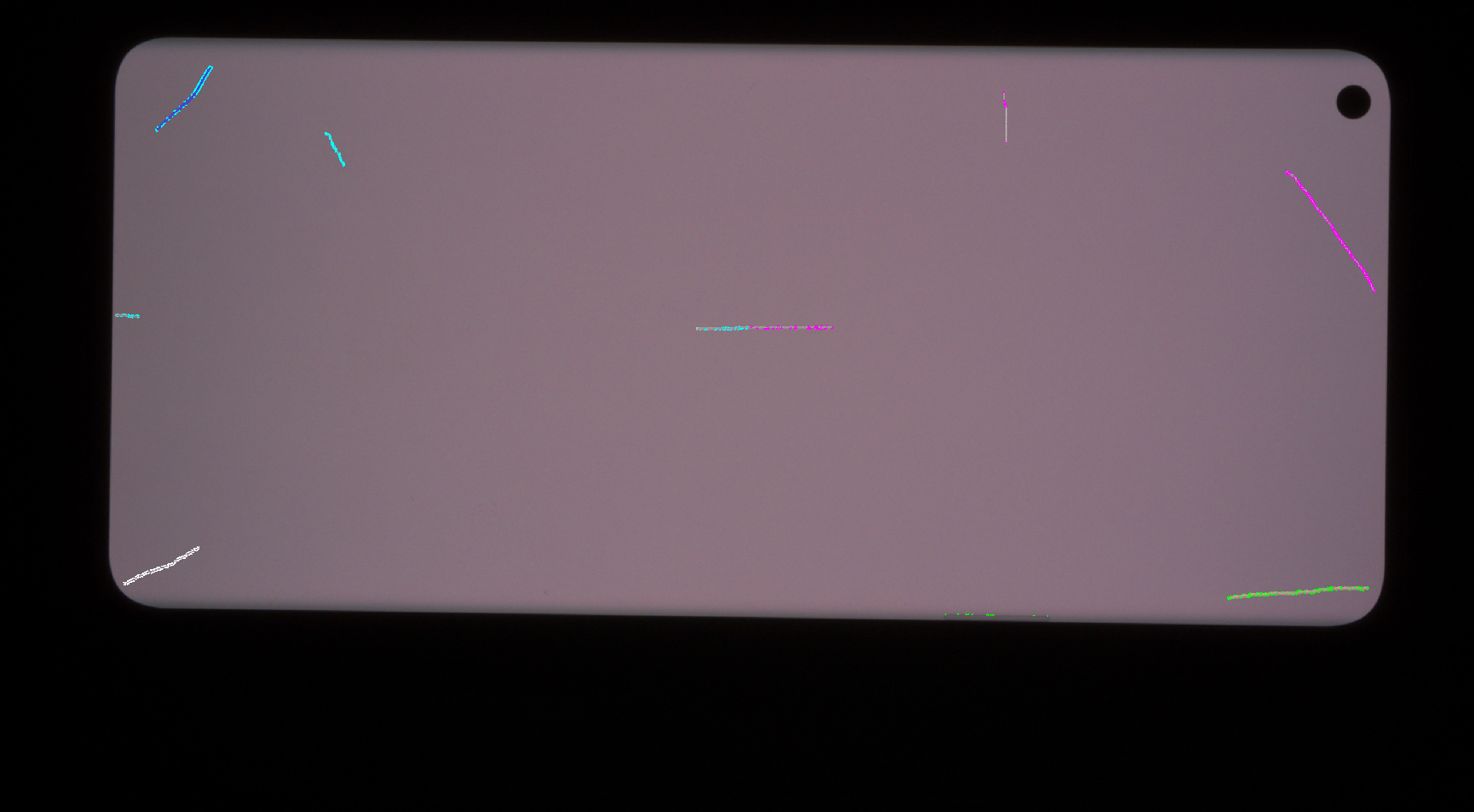

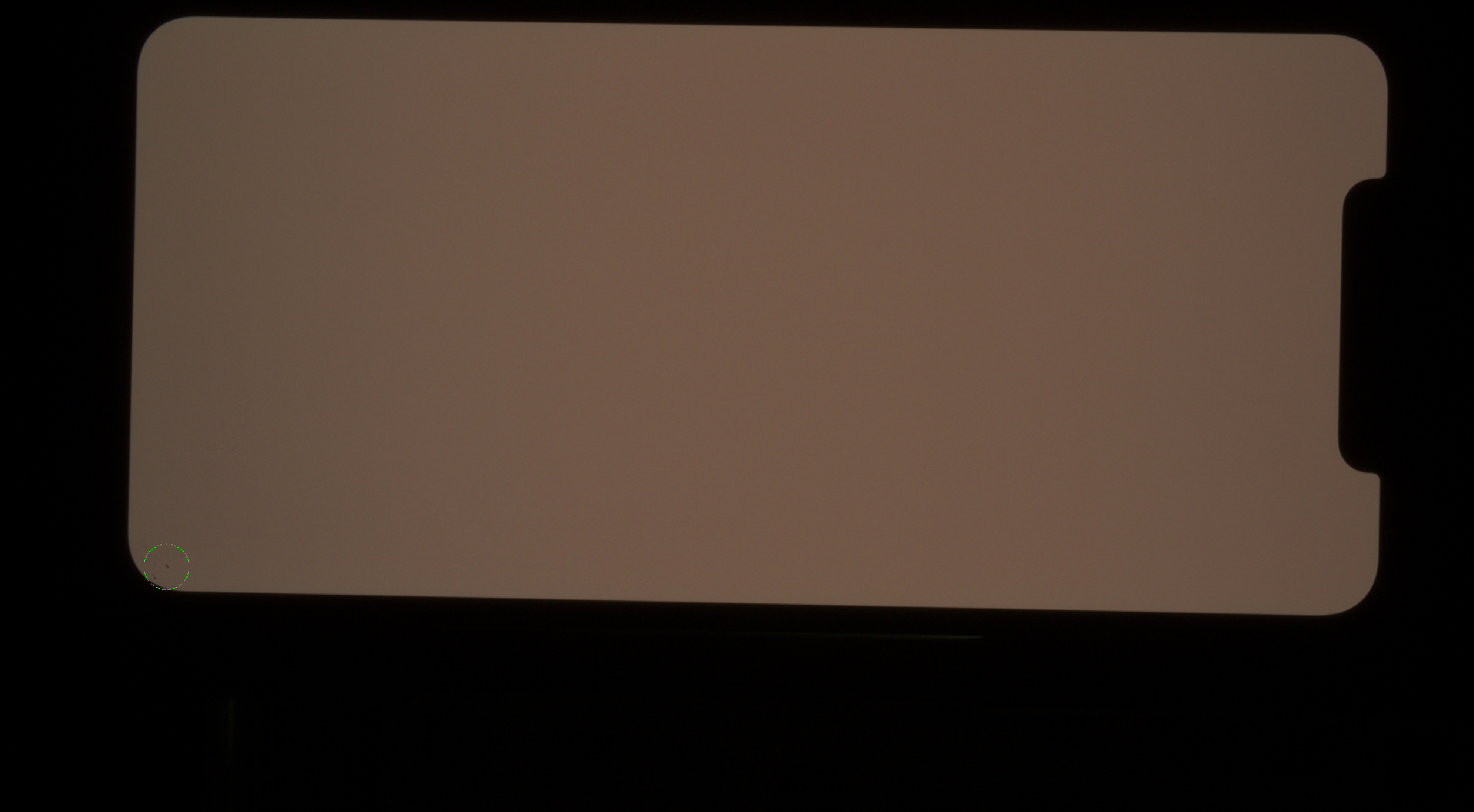

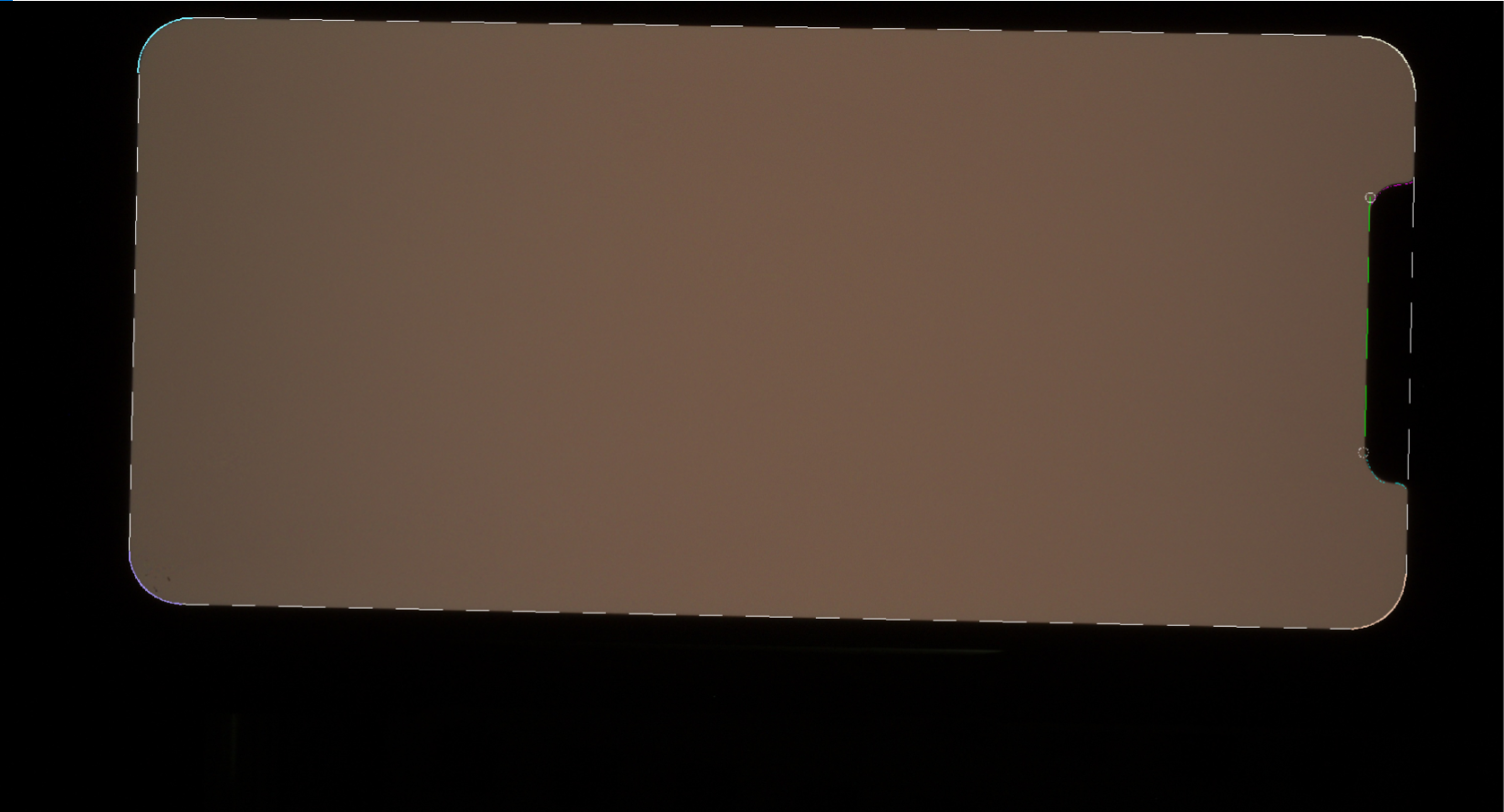

1、Aiming at screen detection, PMADS firstly conducts positioning modeling on the mobile phone screen contour and obtains the screen curve function. Based on the screen function, distinguish the edge area and the center area of the screen, and use different bad line bad light dark spot algorithm to detect the screen.

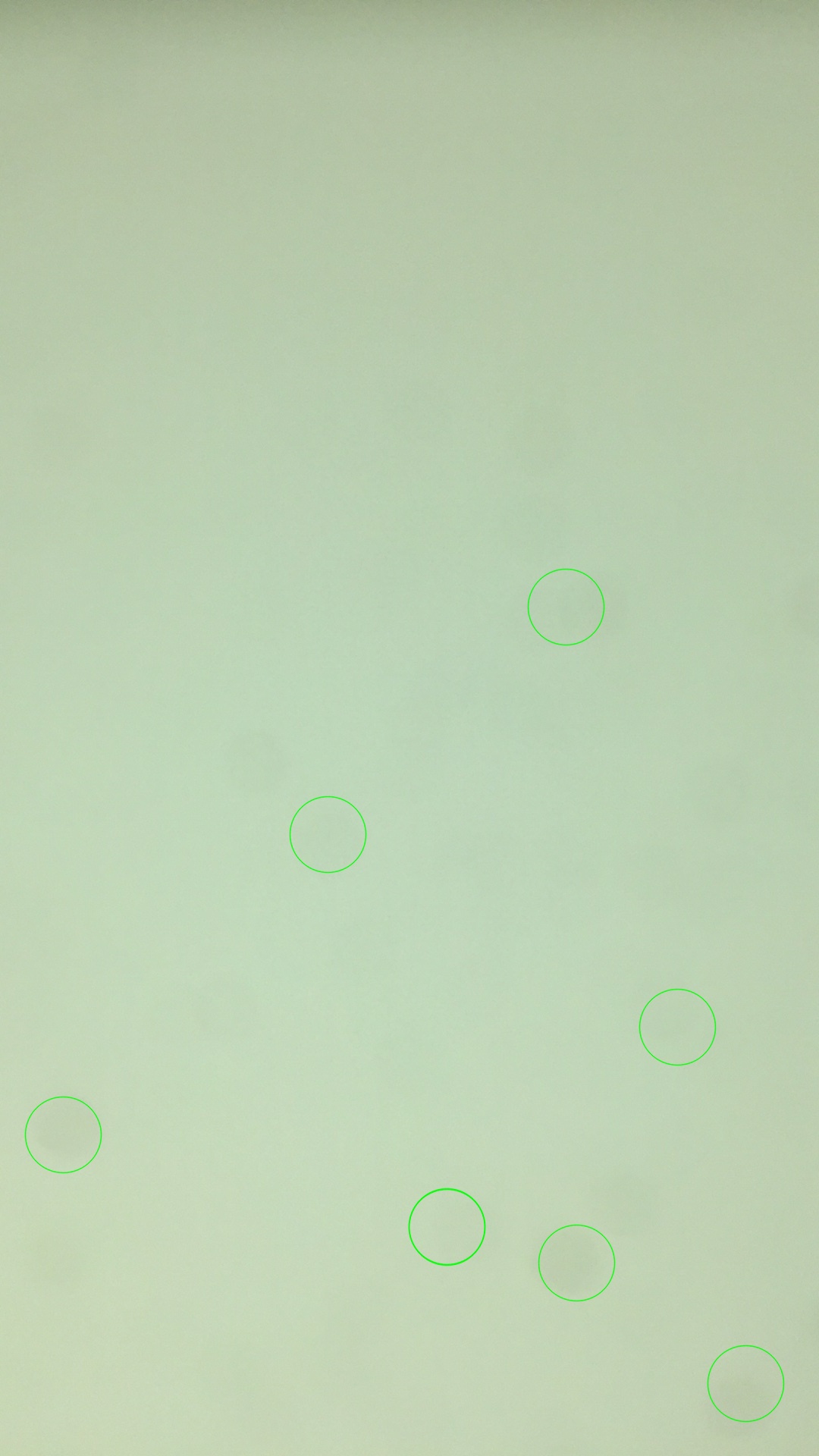

Test results:

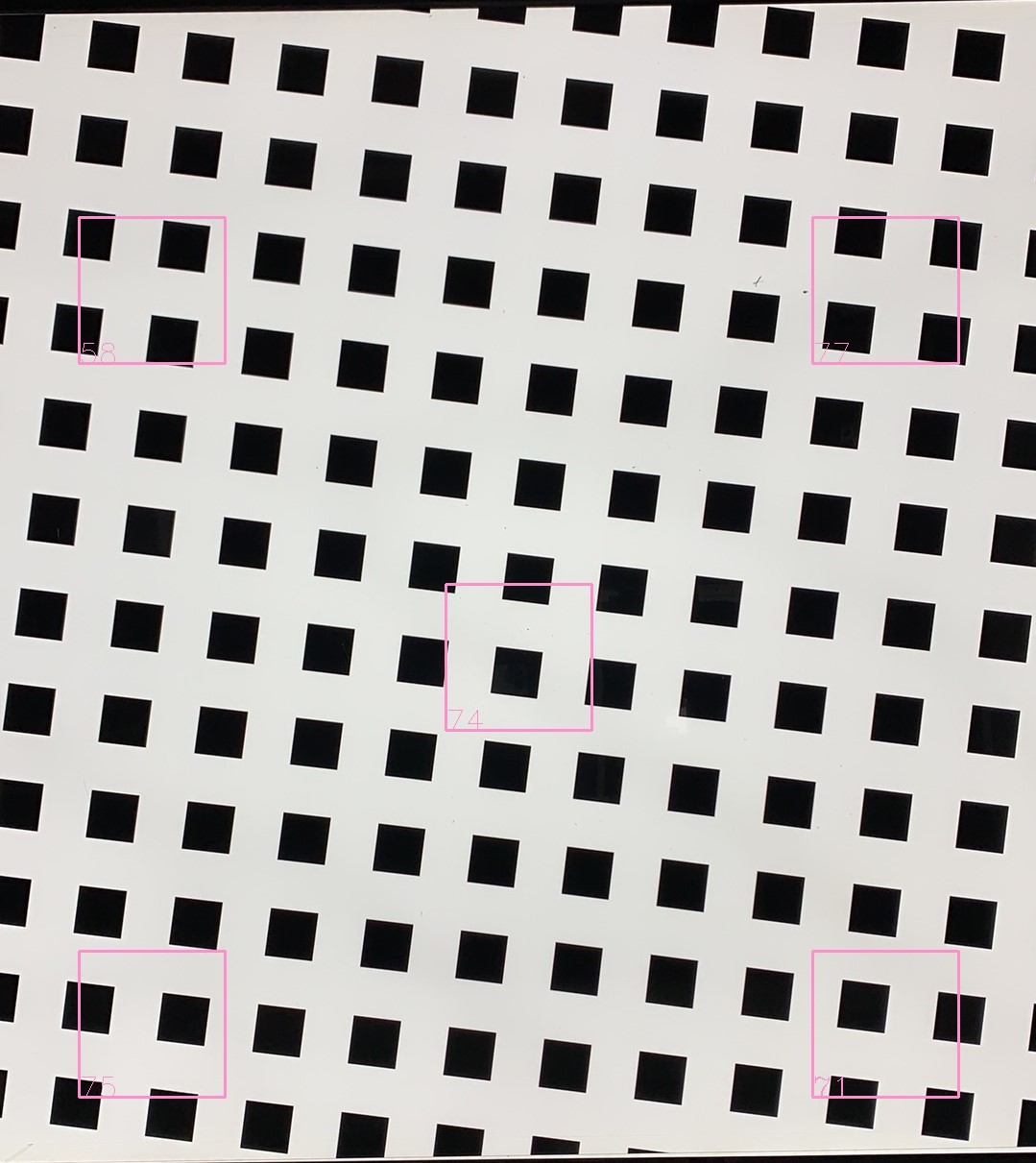

2、MTF50 calculation is performed on the hypotenuse of the shooting grid to calculate sharpness:
3、Analyze camera lens for dark spots and broken lines

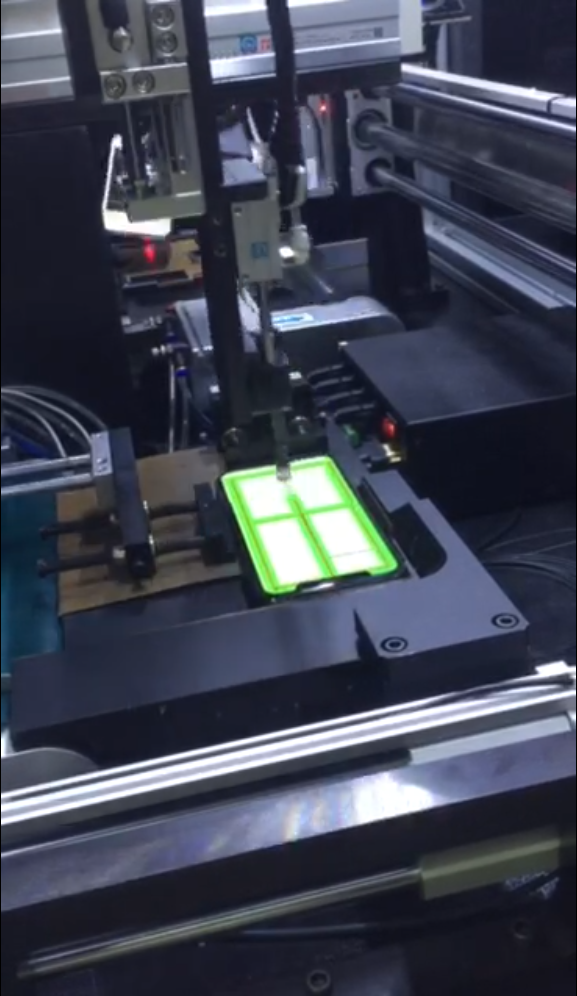

4、The touch sensitivity is detected by recording the screen sliding trace through the APP
Position the 3Dtouch button on the screen

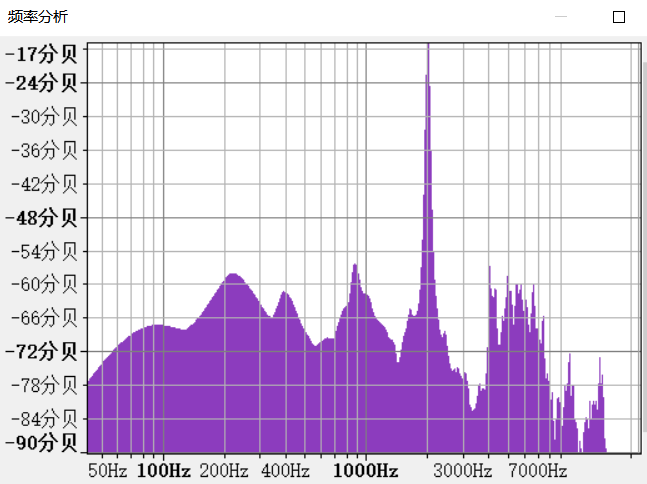

5、Calculate the frequency volume of the microphone
1.1 Structure diagram
The left picture is a fixed position multi-height labeling scheme, and the right picture is a multi-height adaptive labeling scheme for any position of the product label (the following is explained for the right picture)
1.2 System Composition
The system consists of five components: conveyor belt module, locator module, marking module, label conveying module, and labeling module.
1.3 Process introduction
Put the product > Convey > Product inspection > Product positioning and pressing > Print label > Move position of robotic arm > Label > Transfer away
1、Put the product on the conveyor belt according to the direction
2、Driven by the conveyor belt, the product automatically flows in the direction of the labeling mechanism;
3、When the product is close to the detection sensor, the system stops the conveyor belt after detecting the signal in place of the product;
4、The locator positions the product to the side;；
5、The SKU label is printed, and the robotic arm moves to absorb the label;；
6、The robotic arm transports the label to the labeling position according to the SKU；
7、The labeling module presses down the label vertically；
8、After the labeling is completed, the labeling module rises and releases the positioner, and the product is conveyed away。
1.4 Principle
1、The product SKU label information is imported into the system through EXCEL (or other methods).。
2、The system configures the labeling positions of different SKU products once, such as the labeling position of power bank product 1 (X1, Y1), the labeling position of camera products (X2, Y2), the labeling position of earphone products (X3, Y3) .。
3、When the SKU is switched, after the label printing is completed, the system will transport the label to the corresponding labeling position through the robotic arm according to the difference of the label, and wait for the product to be in place before pressing the label。
4、The labeling module supports labeling of products with different heights.。
1.5 Efficiency
SKU labels are printed and labeled in real time, with a speed of up to 5 seconds per label, and about 720 product labels can be completed per hour。
1.6 Advantages
Practical and strong: switch between different SKU products, labeling does not require mechanical adjustment. Easy to use.
High precision: label sticking precision can be controlled within +-1MM deviation. Demonstrate the level of product quality control and virtually enhance the corporate image.
High efficiency: The real-time marking speed of various commodities is 6 seconds per mark, and the efficiency can be further improved by tuning for business scenarios. Greatly save manpower configuration
1.7 Fixed position labeling solution demonstration video
-
-
